9.4.4 BGA Component Reballing, Robotic Ball Removal Reflow, Reflow Oven Attachment Method

This procedure covers reballing of BGA components.

Minimum Skill Level - Expert
Recommended for technicians with advanced soldering and component rework skills and extensive experience in most repair/rework procedures.

Conformance Level - High
This procedure most closely duplicates the physical characteristics of the original, and most probably complies with all the functional, environmental and serviceability factors.

Acceptability References
IPC-A-610 Acceptability of Electronic Assemblies
Procedure References
1.0 Foreword
2.1 Handling Electronic Assemblies
2.2 Cleaning
2.5 Baking And Preheating
IPC 7711/7721 5.7.3 BGA Reballing Procedure - Fixture Method
IPC J-STD-033 Joint Industry Standard for Handling, Packing, Shipping and Use of Moisture/Reflow Sensitive Surface Mount Device
J-STD-001 Requirements for Soldered Electrical and Electronic Assemblies
GEIA-STD-0006 Requirements for Using Solder Dip to Replace the Finish on Electronic Piece Parts
Tools and Materials
Cleaning Brushes
Disposable brushes for solvent cleaning and application of coatings.
Disposable, puncture-resistant gloves designed for handling mild chemicals.
Additional Items and Supplies
General purpose cleaner for removing contamination.
Cleaninjg System
Cleaning System
Batch or inline cleaning system for removing fluxes and contamination.
Precision microscope with stand and lighting for work and inspection.
General purpose oven for drying, baking and curing epoxies.
Solder Paste
Reflow Oven
Reflow oven with multiple zones for controlled solder reflow.
Solder Paste
Robotic Deball/Tinning System
Robotic system for component tinning and BGA solder ball removal.
Safety Glasses
Safety Glasses
Protect your eyes and your vision with proper safety glasses.
Solder Flux
Solder Flux
Used to prepare solder surfaces and to prevent formation of oxides during soldering.
Solder Paste
Solder Paste
Solder paste for component soldering and rework.
Solder Paste
Solder Spheres
Solder balls or spheres for BGA component reballing and rework.
Nonabrasive, low-linting wipes for cleanup.
Images and Figures
9.4.4 BGA Component Reballing, Robotic Ball Removal Reflow, Reflow Oven Attachment Method
BGA component prior to reballing.
9.4.4 BGA Component Reballing, Robotic Ball Removal Reflow, Reflow Oven Attachment Method
Figure 1. Robotic deball system for controlled removal of solder balls.
9.4.4 BGA Component Reballing, Robotic Ball Removal Reflow, Reflow Oven Attachment Method

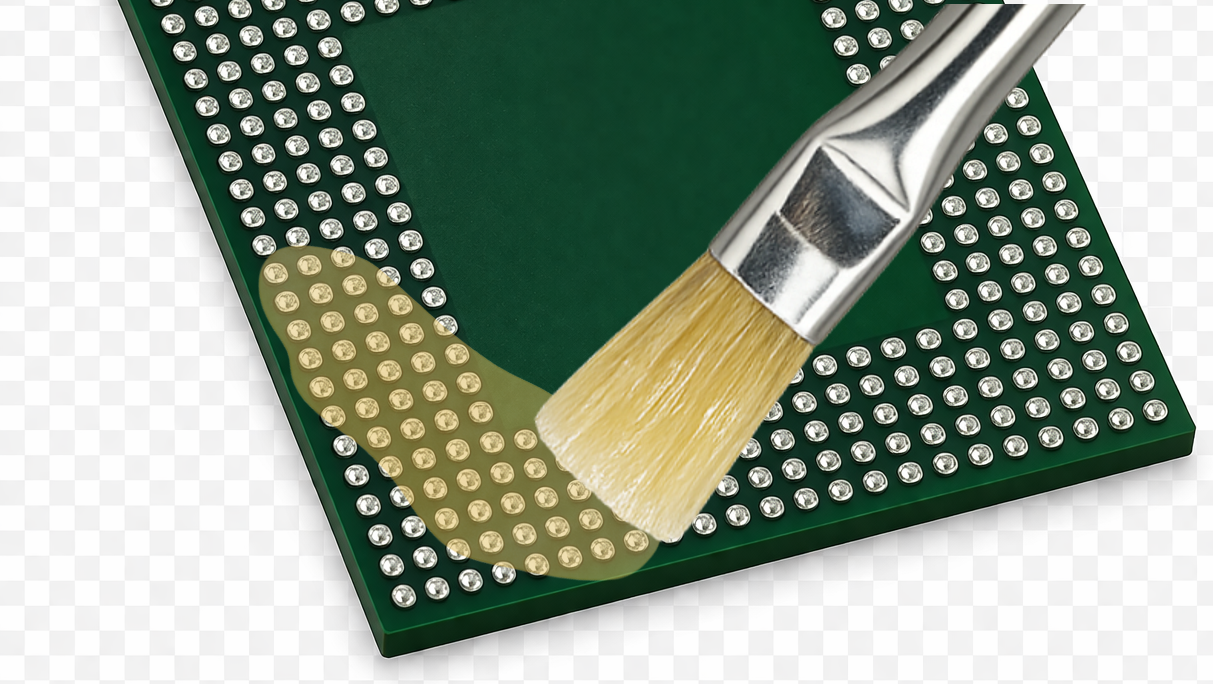

Figure 2. Apply tacky flux to flat BGA component pads using a brush.

9.4.4 BGA Component Reballing, Robotic Ball Removal Reflow, Reflow Oven Attachment Method

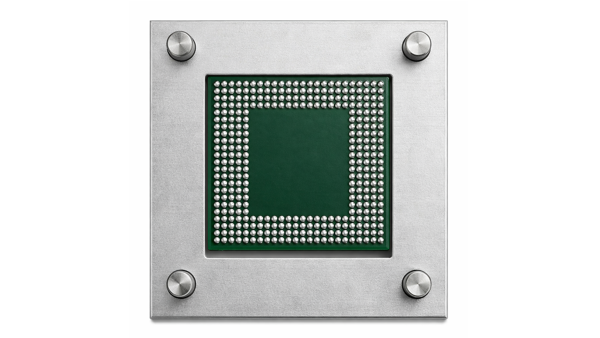

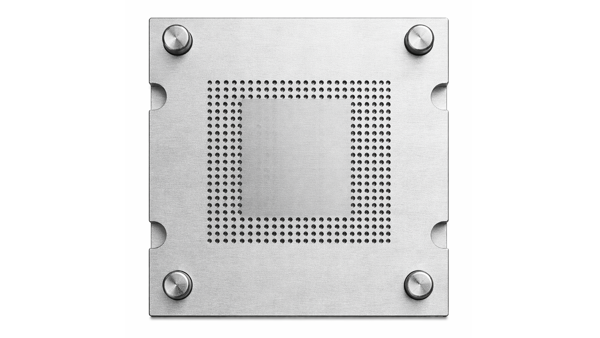

Figure 3. Place the BGA component(s) into a fixture and cover with the appropriate stencil.
9.4.4 BGA Component Reballing, Robotic Ball Removal Reflow, Reflow Oven Attachment Method
Figure 4. Reflow oven used for controlled reflow of solder balls.
Procedure - Touchless Ball Removal

This BGA component de-ball process dissolves and flushes away the existing solder balls, leaving a flat surface on each of the BGA component solder pads.
  1. Ensure the BGA components to be processed meet the requirements for acceptable moisture levels.
    Note: For information on baking and moisture level control see 2.5 Baking and Preheating.
  2. If the BGA components are supplied on tape and reel, a matrix tray or custom holding fixture will be required.
  3. Set up the robotic de-ball system with the proper process parameters, including solder immersion depth, dwell times, insertion and extraction speeds, solder temperature, and other settings.
    Note: Refer to the component data sheet for guidelines regarding component peak temperatures specifications, and other process parameters.
  4. Load the BGA components onto the fixture or matrix tray and place into the robotic BGA deball system.
  5. Activate the robotic machine process cycle.
  6. Pick up a row of components from the matrix tray using a multi-head vacuum pickup.
  7. Apply flux to the existing solder balls.
  8. Remove the excess flux using an air knife.
  9. Run the components through a programmed preheat stage to activate the flux.
  10. Remove the unwanted solder balls using a dynamic solder wave.
  11. Run the components through a filtered hot water rinse to remove the flux residues.
  12. Dry the components using an air knife.
  13. Return the de-balled BGA components to their original position in the matrix tray.
  14. Visually inspect the BGA component appearance, cleanliness, and condition. Check the solder pads for flatness and inspect the body of the BGA component for abnormalities.
Procedure - Reflow Oven Attachment
  1. Apply tacky flux to the flat BGA component pads using a brush. Flux should be evenly applied across the entire BGA pad surface. Use minimal flux needed to fully cover the surface. Remove any excess flux. See Figure 2.
  2. Place the BGA components into a fixture and cover with a matching stencil. Check to ensure the alignment is correct. See Figure 3.
  3. Place a quantity of the appropriate size solder spheres onto the fixture and use a clean cleaning brush to distribute the solder spheres, so they fill all the open apertures in the BGA component stencil. Check to be sure all the apertures are filled with only one solder sphere. Tilt the fixture and pour the excess solder spheres into a collection container for reuse.
    Note: Avoid overloading the solder stencil with excess solder spheres as they may wedge under the stencil. This will make lifting the stencil to remove any excess solder spheres difficult.
  4. Set up the reflow oven with the proper profile and run the oven for 5 minutes to ensure the reflow zone temperatures are stable. See Figure 4.
    Note: If a profile has not been defined, a profile will need to be created.
  5. Place the BGA fixture and BGA components into the reflow oven. As the fixture moves through the oven, the fixture and components will go through the required preheat, reflow, and cooling cycles.
  6. When the fixture and components emerge from the reflow oven, use gloves to remove the fixture and place it on a flat surface. Allow the fixture and components to cool for one minute to ensure package thermal stability prior to removing the BGA components from the fixture.
  7. Visually inspect the BGA component balls for proper alignment and appearance.
  8. Clean the BGA components in an approved cleaning solution.
  9. Inspect the body of the BGA components for abnormalities.
  10. Inspect the BGA components for cleanliness.
Procedure for reference only.
