May 6, 2020
BGA Component Reballing - Start to Finish
Our high-reliability BGA Reballing service can quickly rework BGA components that require reballing. Every BGA Reballing project is completed to meet IPC and JEDEC specifications.

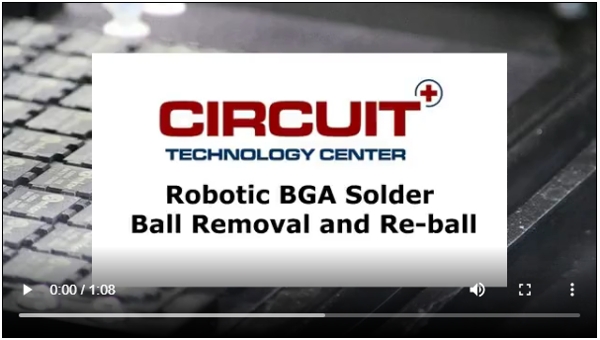

Watch Our 1 Minute Start to Finish Video
We use reliable, repeatable, and industry-wide proven processes to reball BGA components.

Alloy conversion to either leaded or lead free solder

Gold mitigation and tinning of LGA devices


Reball process complies with the following.

J-Std-033 Handling, Packing, Shipping and Use of Moisture, Reflow, and Process Sensitive Devices

J-STD-001 Requirements for Soldered Electrical and Electronic Assemblies

GEIA-STD-0006 Requirements for Using Solder Dip to Replace the Finish on Electronic Piece Parts

IEC TS 62647-4 Process management for avionics - Aerospace and defense electronic systems containing lead-free solder - Part 4: Ball grid array (BGA) re-balling

We can perform ball-attach to LGA and QFN devices. BGA component reballing services are available for BGA components with 0.4 mm pitch and up.

Post reball verification and inspection services include shear testing, XRF alloy verification, visual inspection to confirm sphere condition, ball alignment, size and location, x-ray inspection for excessive voiding and component marking using thermally printed labels or laser marking.

In addition to BGA component reballing, we have 7 top-line Air-Vac BGA rework systems and a fully trained staff of engineers and operators to support your BGA component rework needs.

This combination of BGA component reballing services and BGA component rework services provides you with a single source to meet project demands and tight schedules while meeting the highest quality standards. We're recognized as an industry leader in BGA services and have been qualified by companies around the world.

Whether you have one board or one thousand boards for rework, we're the company to turn to for BGA rework and reballing services. All projects are completed in our modern, fully compliant facility.

Watch Our 1 Minute Start to Finish Video
