2.6.2 Legend Marking, Hand Lettering Method

  • This method can be used to add, change or replace legend and markings on printed boards using epoxy ink and a pen to hand letter the legends on the printed board surface.
  • Apply legend using a wood stick dipped in epoxy ink.
  • Completed legend repair.
Outline
This method can be used to add, change or replace legend and markings on printed boards or printed board assemblies. This method uses epoxy ink and a pen to hand letter the legends on the printed board surface.

Proprietary Information Proprietary
This guide may contain proprietary or copyright-protected information for access by authorized persons only.

Minimum Skill Level - Intermediate
Recommended for technicians with skills in basic soldering and component rework, but may be inexperienced in general repair/rework procedures.

Conformance Level - High
This procedure most closely duplicates the physical characteristics of the original, and most probably complies with all the functional, environmental and serviceability factors.

Acceptability References
IPC-A-600 2.0 Externally Observable Characteristics  Proprietary
IPC-A-610 8.0 Marking  Proprietary
Procedure References
1.0 Foreword
2.1 Handling Electronic Assemblies
2.2 Cleaning
2.5 Baking And Preheating
2.7 Epoxy Mixing and Handling
IPC7721 2.6.2 Legend/Marking, Hand Lettering Method  Proprietary
Tools and Materials
CircuitMedic Part
Alcohol Swab
Self-saturating Isopropyl alcohol swab. Squeeze handle to release alcohol.
Cleaner
Cleaner
General purpose cleaner for removing contamination.
CircuitMedic Part
Cleaning Brushes
Disposable brushes for use with solvents for cleaning and application of coatings.
Coatings
Color Agents
Use to tint the color of epoxy used for solder mask repair or circuit base board repair.
CircuitMedic Part
Circuit Bond Packs
Clear, superior strength epoxy in two-compartment plastic packages
CircuitMedic Part
Knife with #16 Blades
A must-have tool for precise cutting, scraping and trimming.
Microscope
Microscope
Precision microscope with stand and lighting for work and inspection.
CircuitMedic Part
Mixing Picks
Unique mixing sticks have a paddle shape on one and sharp pick on the opposite end.
Oven
Oven
General purpose oven for drying, baking and curing epoxies.
Wipes
Wipes
Nonabrasive, low-linting wipes for cleanup.
Images and Figures

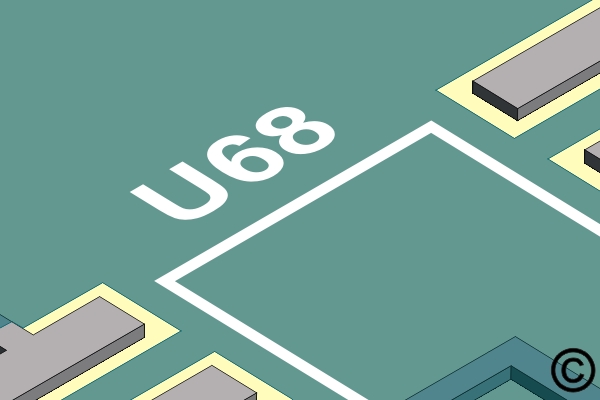

2.6.2 Legend Marking, Hand Lettering Method
Damaged Legend
2.6.2 Legend Marking, Hand Lettering Method
Figure 1: Apply legend using a wood stick dipped in epoxy ink.
2.6.2 Legend Marking, Hand Lettering Method
Figure 2: Completed legend repair.

Procedure
  1. Clean the area.
  2. Scrape off any remaining character or legend with a knife and clean the area.

    Caution
    Abrasion operations can generate electrostatic charges.
  3. Mix the epoxy ink. White is the most common color.
  4. Sharpen a wood stick and dip the pointed end into the epoxy ink. Hand letter the legend or markings as needed.
  5. Cure the epoxy ink per the manufacturer's instructions.
Evaluation
  1. Visual examination for proper characters, positioning and legibility.
Procedure for reference only.
